IX. Replacement Parts Table
Site note
This chapter's table uses two printed columns only, "Parts No." and
"Nomenclature" — there is no separate quantity or price column on any
of its three pages. An asterisk (*) prefixed to some Nomenclature
entries is printed on the source page with no key or legend explaining
it anywhere in the manual; it's transcribed here exactly as printed.
Bold section headings ("DECK FRAME", "MOTOR BLOCK", "FLYWHEEL",
"SWITCH BLOCK", "CASE BLOCK", "AMPLIFIER", "CARD BLOCK",
"PRE-AMPLIFIER") break the table into the groups below; the opening
C1 series (Deck Panel) and the closing C10 series (Oscillator Block)
print no heading of their own — the C1 rows start the chapter directly
and the C10 rows follow the Pre-Amplifier rows directly, with no bold
divider printed for either group. Both are still broken out as their
own table below, grouped by their Parts No. prefix, for readability.
Parts No. Nomenclature C1-001 * Deck Panel 002 * Knob, Track Selector Control 002a Screw, Retaining Track Selector Control Knob 003 * Head Cover (Main) 004 * Head Cover (Sub) 005 Base, Head Cover 006a Capstan Rest 006b Capstan Holder 007a Top Plate, Tape Guide 007b Table, Tape Guide 007c Bearing, Tape Guide 007d Bottom Plate, Tape Guide 008 Tape Cleaner, Complete 008a Felt, Tape Cleaner 009 Prop A, Head Cover 010 Prop C, Head Cover 011 Escutcheon, Recording Lamp
Deck Frame
Parts No. Nomenclature C2 001 * Deck Frame 002 Head Assembly, Complete 002a Erase Head 002b Record/Playback Head 002c Bias Head 002d [illegible] Spring, D 002e Tape Guide (No. 17) 002f Tape Guide (N-3) 002g Tape Guide (N-2) 002h Table, Head 002i 4T Cam 002j Gear B, Head 002k Spring, Field Table 002l Holder, Spring 002m Nut, Head Lever 002n Up-Down Table, Field 002o Table, Field 002p Spring, Field Table 002q Micro Angle Table 002r 4T Shaft 002s Upper Plate, Head 002t Screw, Angle Adjustment 002u Plate, retaining Erase Head 002v Plate, retaining Record/Playback Head 002w Side Plate, Bias Head 002x Rotary Switch 002y Gear A, Head 002z 4T Switch Table C2-003 Tape Counter, Complete 003a Pulley, Counter 003b Belt, Counter 004 * Supply Reel Assembly, Complete 004a Retainer, Reel 004b * Reel Plate, Assembly 004c Rubber Ring 004d Rewind Pulley 004e Spring G (Left) 004f Washer 004g Thrust Washer Pin, Reel 004h Take-up Roller, C 004i Holder, Reel (Star Type Spring) 004j Nylon Washer 004k Washer 004l Washer 004m Thrust Washer Pin, Reel 004n Washer 004o Washer 004p * Metal Fitting, Reel 004q Holder, Reel (Star Type Spring) 004r Washer 004s Washer Pin 004t Pulley B2, Reel 004u Screw, without Head 4×7 004v Pulley C, Reel 004w Screw Flat 3×6 004x Screw 005 * Take-up Reel Assembly, Complete 005a Take-up Roller, A 005b Spring G (Right) 005c Take-up Roller, D 005d Spring F3 005e Washer 005f . Washer 005g Set Sleeve 005h Screw, without Head 3×3.2 005i Nylon Tube 006a AS Lever, Complete 006b Spring, AS Lever 006c Plate, AS Lever (with Prop) 007a Instant Stop Lever, A 007b Spring, Instant Stop Lever 007c Stopper, Instant Stop Lever 007d Holder B, Instant Stop Lever 007e Screw, Retaining Instant Stop Lever 008a Recording Safety Button 008b Cam Stopper 008c Fiber, Cam Stopper 008d Insulator Plate, Cam Stopper 009a Pinch Wheel 009b Metal Cap, Pinch Wheel 009c Screw, Pinch Wheel C2-009d Lever, Pinch Wheel 009e Shaft C, Pinch Wheel 009f Spring, Pinch Wheel 009g Shaft A, Cam Roller 009h Cam Roller, B 010a Lever, Take-up Brake Roller 010b Rubber (Small), Brake 010c Screw, Brake Roller 010d Shaft, Brake Lever 011a Lever, Supply Brake Roller 011b Rubber (Large), Brake 011c Screw, Brake Roller 011d Shaft, Brake Lever 012a 6P Slide Switch ESS-22C-NB (Automatic Switch) 012b Plate, Automatic Switch 013a Speed Change Switch 013b Table, Speed Change Switch 013c * Spring, Lever FB 014 Idler Wheel, A 015 Internal Wheel 016a Lever, A (with Lever E) 016b Shaft, Lever A 016c Spring, D 017a Lever, B (with Lever D) 017b Cam Roller, A 017c Cam Roller, B 017d Spring, B 018a Lever, C3 018b Spring, D 019a Lever, G (with Lever H-D) 019b Metal, Lever G 019c Shaft B, Idler 019d Spring, Lever H-D 020a Lever, K 020b Screw 020c Torsion Spring, D 020d Bush 021a Lever, FA 021b Cam Roller, A 022 Lever, F (for Motor) 023 Lever, A2 024 Field Lever, A 025 Field Lever, B 026 Field Lever, D C2-027 Field Lever, E 028 * Prop, Panel 029 Holder B, Spring 030 Pin B, Spring 031 Stopper C, Lever G 032 Hum Bucking Coil 033 Cycle Change Switch 034 Micro Switch V-1A 035 3P Lug Plate 036 4P Jack 038a Lever, Belt Change 038b Stopper, Belt Change Lever 038c Spring, Belt Change Lever 038d Spring B, Belt Change Lever 040 * Table, Oscillator Card Block 041 * Voltage Adjustment Coil 042 * Tubular Type Electrolytic Condenser
Motor Block
Parts No. Nomenclature C3-001 Motor, Complete 001a + Screw Semi-Cubic 3×15 001b Stepped Pulley 001c Motor Pulley 001d Holder L, Motor 001f Motor Fan 001g Screw, without Head 001h Prop A, Motor 001i Prop B, Motor 001j * MP Condenser 2μ + 0.8μ 250VAC 001k Holder, MP Condenser 001l – Screw Flat Mould 4×50 001m External Shield Plate, Motor 002a * MP Condenser 1μ 220VAC 002b 5P Lug Plate 003 Drive Belt
Flywheel
Parts No. Nomenclature C4 001 Flywheel, Complete 001a Capstan 001b Main Metal Cap, B 001c Washer Pin 001d Main Metal Case, B 001e Spring, Main Metal 001f Nylon Washer 001g Main Shaft C 001i 4mm Ball Bearing 001j Nylon Plate 001k Plate B, Flywheel 001l Washer 001m Spring Washer 001n Washer 001o 5mm Wing Nut 001p Screw, Flywheel Adjustment 001q 5mm Nut 001r Prop B, Flywheel 001s Prop A, Flyweel[sic]
Switch Block
Parts No. Nomenclature C5-001 Switch Block, Complete 001a * Knob, Record/Play & Rewind Forward Fast 001b * Screw 001c Cam, A 2 001d Cam, B 001e Cam Roller, A 001f Switch Table, A 001g Spring, E 001h Lever, I 001i Screw 001j 4mm Nut 001k Rotary Switch S-133-B 001l Fast/Forward Rewind Shaft 001m Plate, Cam 001n Spring, K 001o Cam, C 001p + Screw Flat Mould 4×6 001q Shield, Mechanism Switch 001r Switch Table, B 001s Washer 001t Cam 001u Washer 001v Washer Pin 002a Wired Resistor 5W 170Ω 002b 5P Lug Plate
Case Block
Parts No. Nomenclature C6-001 * Case 002a Table, Rubber Foot 002b Rubber Foot 002c + Semi-Cubic 3×6 003 * Ventilator, A 004 * Ventilator, G 005a * Speaker Chassis, Left 005b * Speaker Chassis, Right 006 Speed Nut
Site note
Four Nomenclature cells across the Motor Block, Switch Block and Case
Block tables above print a leading "+" or "–" mark before the entry:
001a and 001l (Motor Block), 001p (Switch Block) and 002c (Case
Block). Note also that 002c prints no "Screw" — just "+ Semi-Cubic
3×6" — unlike 001a and 001p above, which do print "Screw". Transcribed
exactly as printed; pages 17–19 carry no legend anywhere explaining
what these marks denote, the same treatment given to the unexplained
"*" prefix used throughout this table.
Amplifier
Parts No. Nomenclature C7-001 Amp. Chassis 001a Lug Plate, 2L2 001b Lug Plate, 1L1 001c Lug Plate, 1L 002 * Power Transformer (T-1) 003a Holder, Jack 003b Name Plate, Jack 004a DIN Jack (J5) 004b 2 Pole E1 Jack (J3) 004c 2 Pole E Jack (J2) 004d 2 Pole E1 Jack (J1) (Mic.) 004e 3 Pole E Jack (J4) (Headphone) 005 Toggle Switch ST-110A (Power Switch) (SW-1) 006a Plate D, Jack 006b Plate C, Jack 007 Variable Resistor 50KΩ (A) (VR1) 008 Rotary Switch F-243 (SW-9) 008a Shield Holder 009a Amplifier Lever, A 009b Amplifier Lever, B 009c Spring B 010a Lamp Socket (Swan Type) 010b Pilot Lamp 011 * VU Meter 012a Holder D, Multi Jack 012b 10P Multi Jack 012c Prop, Multi Jack 013a Resistor 1/4P 680KΩ (R1) 013b Resistor 1/4P 220KΩ (R2) 013c Resistor 1/4P 68KΩ (R3) 013d Wired Resistor 2W 82Ω (R5) 013e Resistor 1W L 910Ω (R4) 013f Resistor 1/4P 4.7KΩ (R8) 013g Resistor 1/4P 15KΩ (R9) 014a Tubular Type Electrolytic Condenser 500μF 50WV (C1) 014b Tubular Type Electrolytic Condenser 1000μF 25WV (C2) 015 Holder, Card 016 Shield 017 Silicon Diode SW-05-01 018 Angle, Voltage Change 019 6P Slide Switch ESS-22A-NB (SW3) 020 Name Plate, Cycle Change 021 Socket, Voltage Change 022 Hexangular Prop, Selector 023 Plug S, Voltage Change 024 Name Plate, AC Change 025 Closed Nut 026 2P Jack (J6) 027a Fuse Post 027b Fuse 028 Cord Support 029 Rubber Bush, AC Cord 030 AC Cord (10 Feet) 031 Chip Jack (J7) 032 4P Connector Socket (J9) 033 * Knob A (Rec. Level) 034 Knob B (Equalizer) 035 4P Connector Socket
Card Block
Parts No. Nomenclature C8 001 * Switch Block Card, Complete (CD 511) 002 * Printed Circuit Plate, Switch Block 003 * Slide Switch SL-1021F 004a * Inductance 3mH (J) 004b * Inductance 47mH (J) 005 * Diode 1N34A (D101) 006 * Transistor 2SC458 (B) (Tr5) 007 * 4P Plug 008a * Resistor 1/4P 120KΩ K (R109) 008b * Resistor 1/4P 68KΩ K (R101) 008c * Resistor 1/4P 22KΩ K (R102, 103, 105) 008d * Resistor 1/4P 15KΩ K (R107) 008e * Resistor 1/4P 12KΩ K (R111) 008f * Resistor 1/4P 10KΩ K (R106, 110) 008g * Resistor 1/4P 5.6KΩ K (R104) 008h * Resistor 1/4P 2.7KΩ K (R112) 008i * Resistor 1/4P 1KΩ K (R108) 009 * Variable Resistor V-10K5 2KΩ B 010a * Condenser 3μ 25V (C108) 010b * Condenser 10μ 10V (C110) 010c * Condenser 30μ 3V (C111) 010d * Condenser 330PF 35V K (C102) 010e * Condenser 0.01μ 50V K (C105) 010f * Condenser 0.012μ 50V J (C103) 010g * Condenser 0.015μ 50V K (C106) 010h * Condenser 0.022μ 50V K (C109) 010i * Condenser 0.056μ 50V K (C107) 010j * Condenser 0.15μ 35V K (C101) 010k * Condenser 120PF (J) (C104) 010l * Condenser 220PF 125V (K)
Pre-Amplifier
Parts No. Nomenclature C9 001 * Record/Playback Pre-amplifier Card, Complete (CD 512) 002 * Printed Circuit Plate, Record/Playback Pre-amplifier 003a * Transistor 2SC650 (A) (Tr1, 2) 003b * Transistor 2SC281 (B) (Tr3, 4) 004a * Resistor 1/4P 220Ω K (R205) 004b * Resistor 1/4P 3.3KΩ K (R204) 004c * Resistor 1/4P 4.7KΩ K (R207, 211) 004d * Resistor 1/4P 22KΩ K (R206) 004e * Resistor 1/4P 68KΩ J (R217) 004f * Resistor 1/4P 100KΩ J (R201, 202, 208) 004g * Resistor 1/4P 120KΩ J (R209) 004h * Resistor 1/4P 150KΩ K (R203) 004i * Resistor 1/4P 100Ω K (R) 214) 004j * Resistor 1/4P 330Ω K (R216) 004k * Resistor 1/4P 470Ω K (R213) 004l * Resistor 1/4P 1.5KΩ K (R215) 004m * Resistor 1/4P 10KΩ K (R210) 004n * Resistor 1/4P 15KΩ K (R212) 005a * Condenser 100μ 3V (C208, 209) 005b * Condenser 10μ 10V (C204, 202, 201, 206) 005c * Condenser 10μ 25V (C212) 005d * Condenser 50μ 25V (C203) 005e * Condenser 330P 35WV (C211) 005f * Condenser 220P 35V (C213) 005g * Condenser 0.01μ 50V (C205) 005h * Condenser 0.22μ 50V (C210) 005i * Condenser 1μ 10V (C207) 006 * Variable Resistor 20KB (VR201) 007 * Headphone Transformer 7K 8Ω (T201)
Parts No. Nomenclature C10-001 * Oscillator Block Card, Complete 002 * Printed Circuit Plate, Oscillator 003 * Oscillator Coil 004 * Transistor 2SC696 (Tr6, 7) 005a * Condenser 9000PF 500V (C405) 005b * Condenser 100μ 3V (C402) 005c * Condenser 10μ 50V (C401) 005d * Condenser 0.01μ 50V (C404) 005e * Condenser 0.047μ 50V (C403) 005f * Condenser 220P (C406, 407) 006a * Resistor 1/4W 1KΩ K 006b * Resistor 1/4W 100Ω K 006c * Resistor 1/2W 10Ω K 007 * Diode SW-05-01 008 * Frame, Oscillator 009 * Nylon Roller
Site note
Row C2-005f's Nomenclature cell prints a stray leading period before
"Washer" (". Washer"), unlike every neighboring row in this column.
It's legible and consistent in shape with a printed period rather than
a stray ink speck, so it's transcribed as printed.
X. Exploded View of Component Parts
Site note
Every callout on the five pages below is itself a Parts No. from the
Chapter IX table above, connected by a leader line to a point on a
photograph or circuit-board scan — there is no separate descriptive
text printed next to each callout. The tables beneath each figure
below cross-reference each printed callout to its Chapter IX
Nomenclature. Where a component value is shared by several physical
parts on a card (e.g. one resistor value used at three board
positions), the same Parts No. legitimately appears on more than one
leader line; the Card Block figures repeat a number of callouts for
this reason and are not mis-transcribed duplicates.
Case

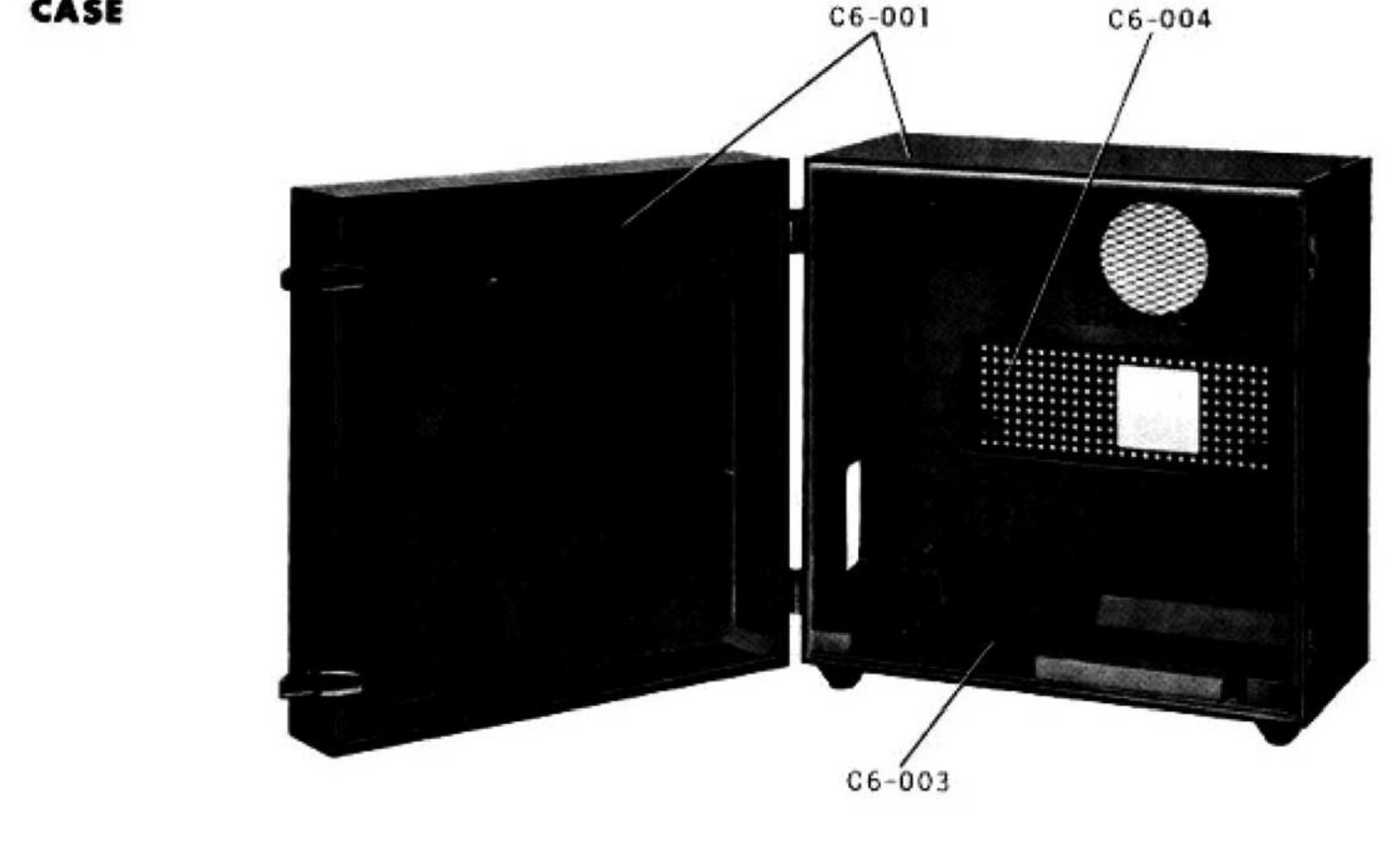

Exploded view of the case, front and rear halves open on their hinge, with callouts C6-001, C6-004 and C6-003
Callout Component (Chapter IX) C6-001 * Case C6-004 * Ventilator, G C6-003 * Ventilator, A
Front Panel

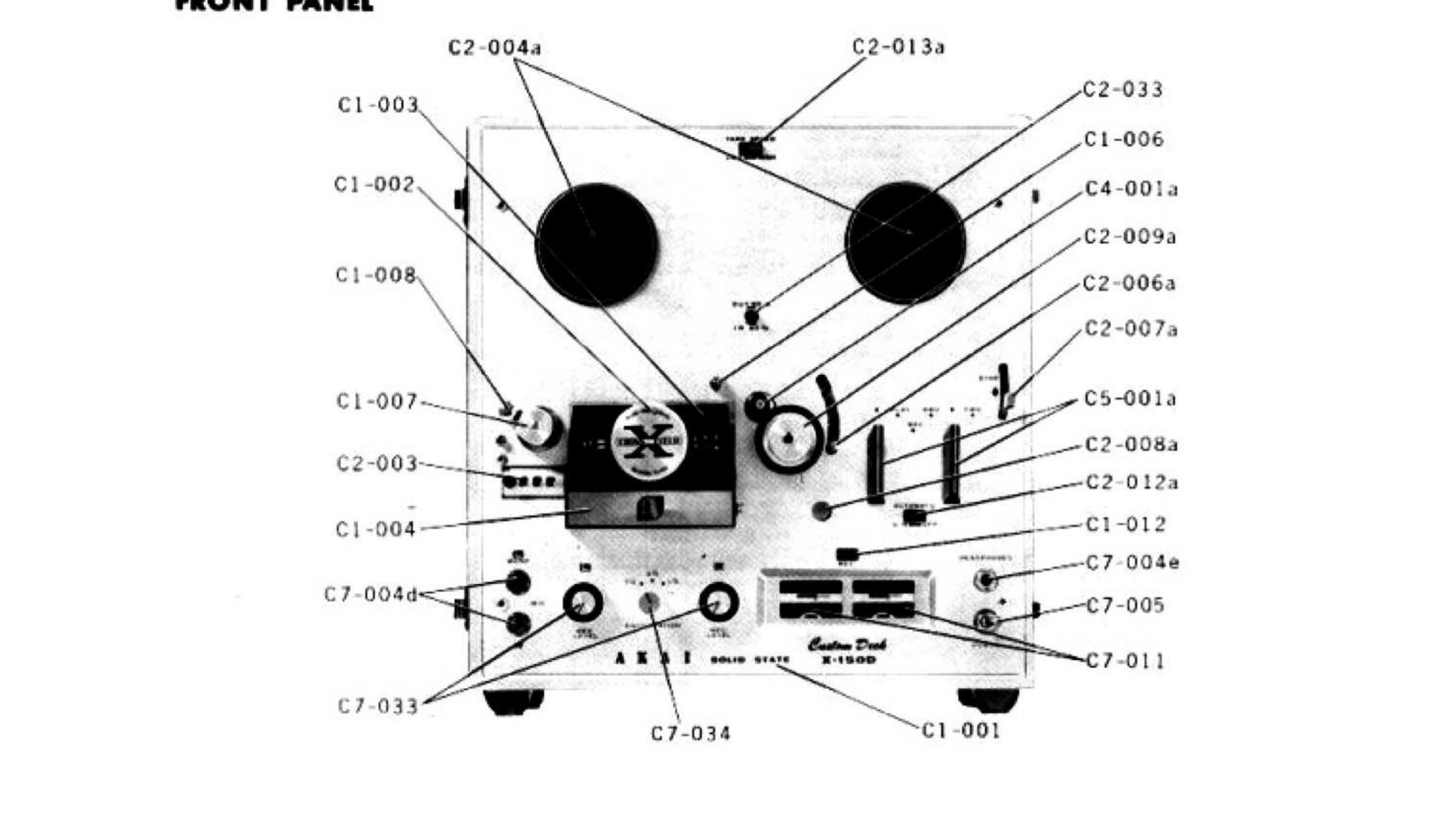

Front panel of the assembled deck with 25 numbered leader-line callouts identifying knobs, jacks, switches and the head cover
Callout Component (Chapter IX) C1-001 * Deck Panel C1-002 * Knob, Track Selector Control C1-003 * Head Cover (Main) C1-004 * Head Cover (Sub) C1-006 — C1-007 — C1-008 Tape Cleaner, Complete C1-012 — C2-003 Tape Counter, Complete C2-004a Retainer, Reel C2-006a AS Lever, Complete C2-007a Instant Stop Lever, A C2-008a Recording Safety Button C2-009a Pinch Wheel C2-012a 6P Slide Switch ESS-22C-NB (Automatic Switch) C2-013a Speed Change Switch C2-033 Cycle Change Switch C4-001a Capstan C5-001a * Knob, Record/Play & Rewind Forward Fast C7-004d 2 Pole E1 Jack (J1) (Mic.) C7-004e 3 Pole E Jack (J4) (Headphone) C7-005 Toggle Switch ST-110A (Power Switch) (SW-1) C7-011 * VU Meter C7-033 * Knob A (Rec. Level) C7-034 Knob B (Equalizer)
Site note
Three callouts printed on this figure — "C1-006", "C1-007" and
"C1-012" — do not correspond to any Parts No. in the Chapter IX table
transcribed above (the C1 series runs 001–011, with a plain "007"
and "012" never printed there — only the lettered "007a"–"007d" and
the block ending at "011"). Their leader lines point into the
reel/head-cover area and the reset-button area respectively, close to
entries the parts table does list under different numbers, but the
manual gives no way to confirm an intended match, so each mismatch is
left as printed (shown as "—" in the table above) rather than silently
corrected.
Amplifier-1

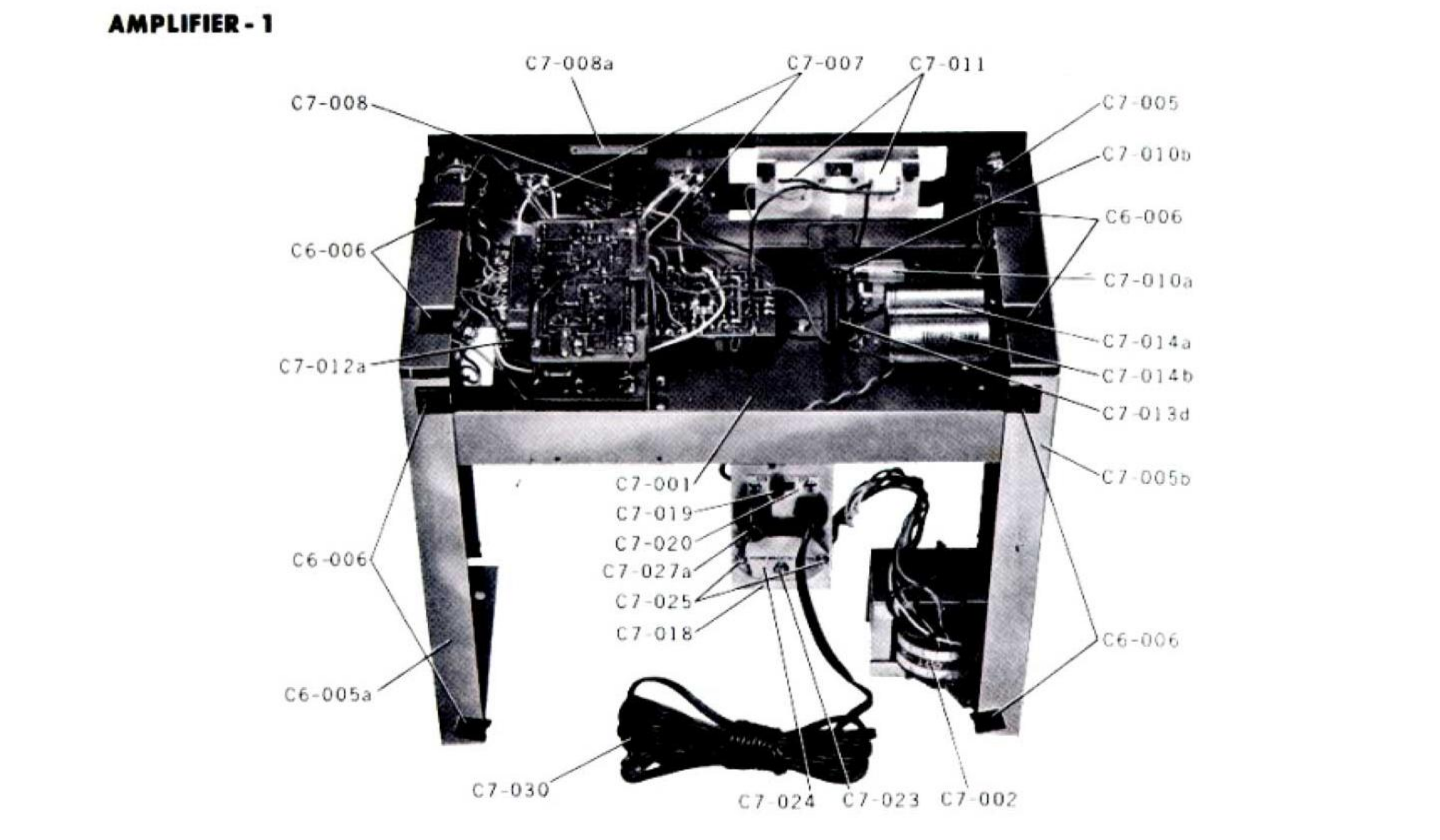

Amplifier chassis viewed from above with legs folded down, showing the card holders, power transformer, and rear jack panel with numbered leader-line callouts
Callout Component (Chapter IX) C6-005a * Speaker Chassis, Left C6-006 Speed Nut C7-001 Amp. Chassis C7-002 * Power Transformer (T-1) C7-005 Toggle Switch ST-110A (Power Switch) (SW-1) C7-005b — C7-007 Variable Resistor 50KΩ (A) (VR1) C7-008 Rotary Switch F-243 (SW-9) C7-008a Shield Holder C7-010a Lamp Socket (Swan Type) C7-010b Pilot Lamp C7-011 * VU Meter C7-012a Holder D, Multi Jack C7-013d Wired Resistor 2W 82Ω (R5) C7-014a Tubular Type Electrolytic Condenser 500μF 50WV (C1) C7-014b Tubular Type Electrolytic Condenser 1000μF 25WV (C2) C7-018 Angle, Voltage Change C7-019 6P Slide Switch ESS-22A-NB (SW3) C7-020 Name Plate, Cycle Change C7-023 Plug S, Voltage Change C7-024 Name Plate, AC Change C7-025 Closed Nut C7-027a Fuse Post C7-030 AC Cord (10 Feet)
Amplifier-2

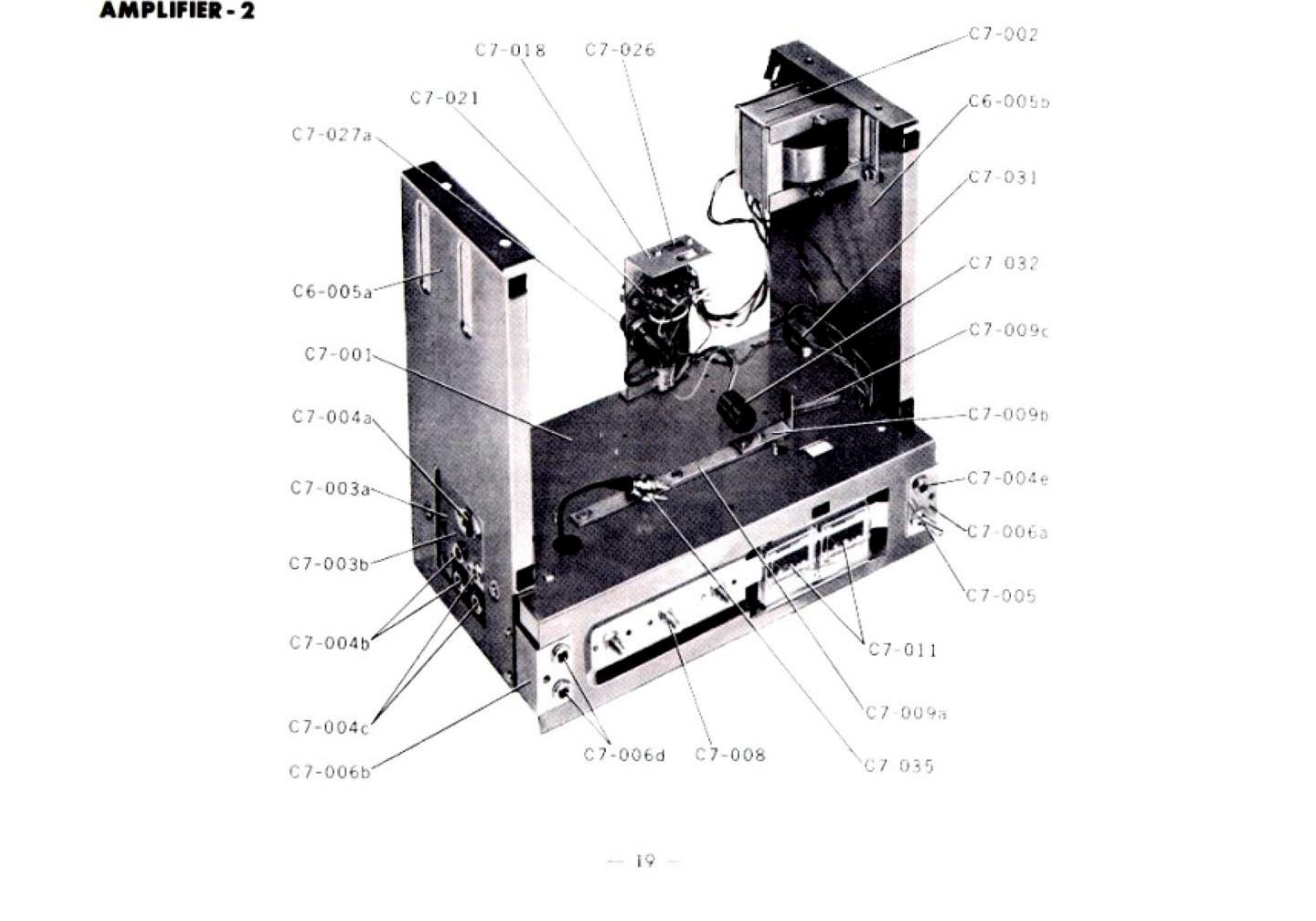

Amplifier chassis viewed from the rear with legs extended, showing the transformer housing, jack panel and card block area with numbered leader-line callouts
Callout Component (Chapter IX) C6-005a * Speaker Chassis, Left C6-005b * Speaker Chassis, Right C7-001 Amp. Chassis C7-002 * Power Transformer (T-1) C7-003a Holder, Jack C7-003b Name Plate, Jack C7-004a DIN Jack (J5) C7-004b 2 Pole E1 Jack (J3) C7-004c 2 Pole E Jack (J2) C7-004e 3 Pole E Jack (J4) (Headphone) C7-005 Toggle Switch ST-110A (Power Switch) (SW-1) C7-006a Plate D, Jack C7-006b Plate C, Jack C7-006d — C7-008 Rotary Switch F-243 (SW-9) C7-009a Amplifier Lever, A C7-009b Amplifier Lever, B C7-009c Spring B C7-011 * VU Meter C7-018 Angle, Voltage Change C7-021 Socket, Voltage Change C7-026 2P Jack (J6) C7-027a Fuse Post C7-031 Chip Jack (J7) C7-032 4P Connector Socket (J9) C7-035 4P Connector Socket
Site note
As with "C1-006" on the Front Panel figure, the callout "C7-006d" is
printed here but has no matching Parts No. in the Chapter IX table
(the C7-006 group runs only "006a" Plate D, Jack and "006b" Plate C,
Jack, both shown above). Transcribed as printed; left uncorrected
rather than guessed.
Site note
The callout "C7-026" does have a matching Chapter IX entry — "2P Jack
(J6)" — shown above, but its leader line on this figure points at a
hex-shanked shaft that looks more consistent with "022 Hexangular
Prop, Selector" a few rows earlier in that same table. The
cross-reference above follows the printed number rather than the
visual match; the manual gives no way to confirm which is intended,
so nothing is substituted.
Card Block-1

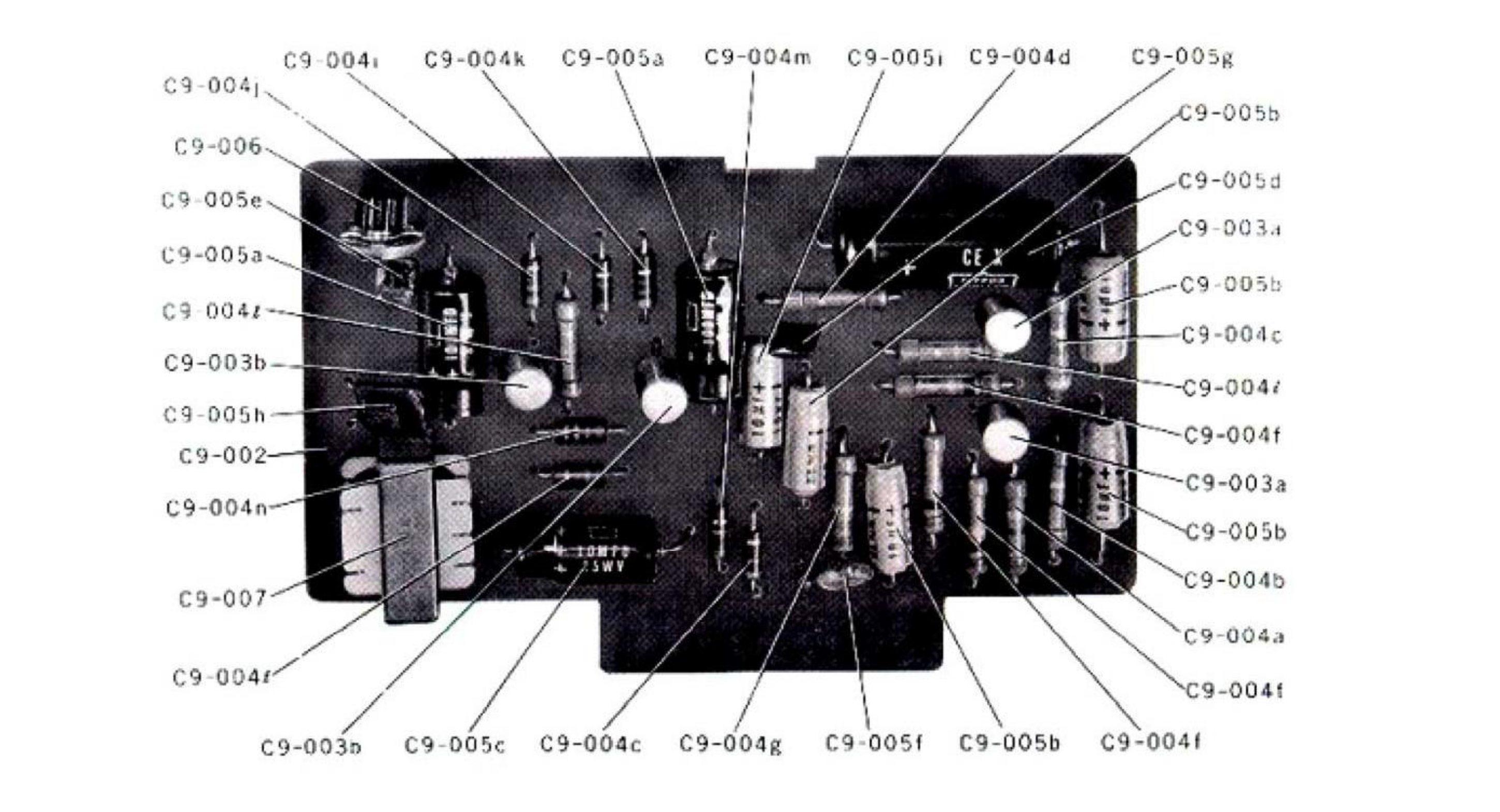

Record/Playback Pre-amplifier card (CD 512) component side, with leader-line callouts to every resistor and condenser position, and the CD-512 printed-circuit trace layout below it

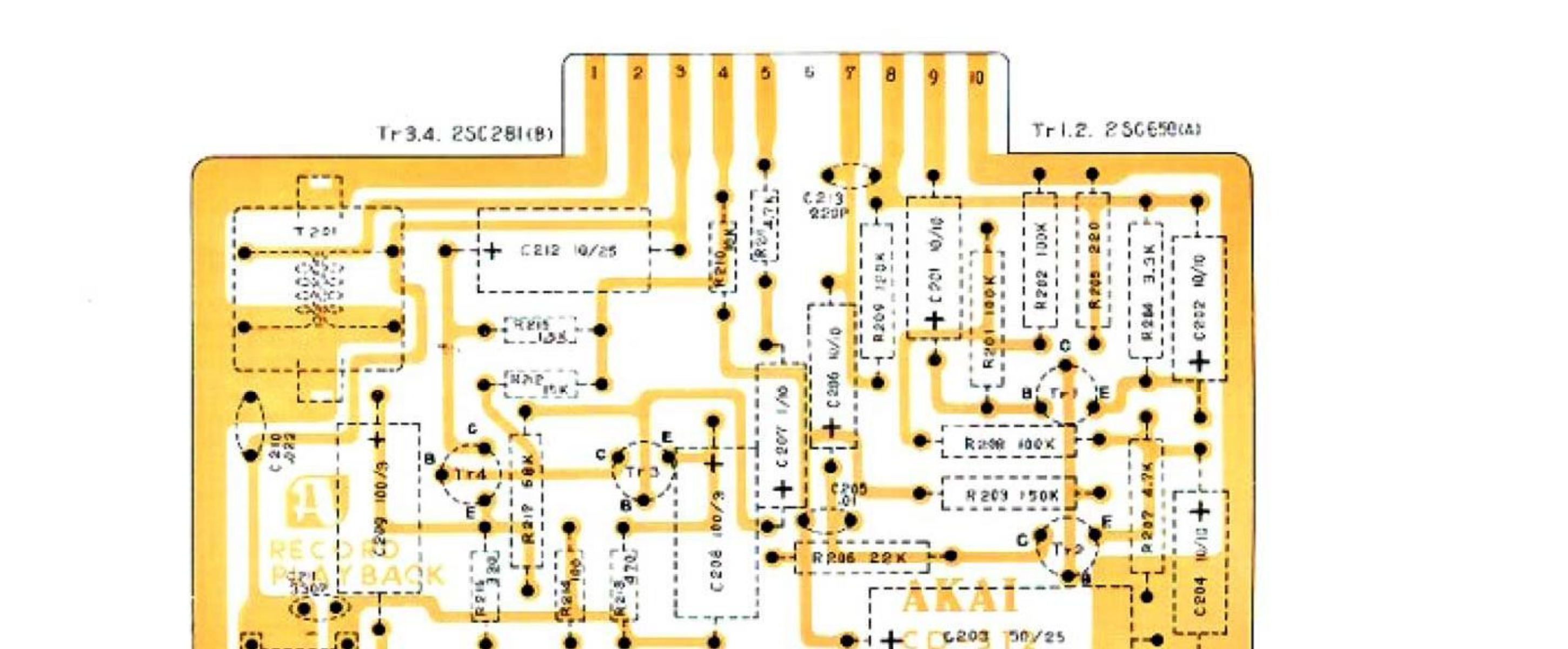

CD-512 printed circuit board trace layout, orange copper traces on white, with connector pins 1–10 and component reference designators Tr1–Tr4, R201–R217, C201–C213, VR201 and T201 printed directly on the board
Callout Component (Chapter IX) C9-002 * Printed Circuit Plate, Record/Playback Pre-amplifier C9-003a * Transistor 2SC650 (A) (Tr1, 2) C9-003b * Transistor 2SC281 (B) (Tr3, 4) C9-004a * Resistor 1/4P 220Ω K (R205) C9-004b * Resistor 1/4P 3.3KΩ K (R204) C9-004c * Resistor 1/4P 4.7KΩ K (R207, 211) C9-004d * Resistor 1/4P 22KΩ K (R206) C9-004f * Resistor 1/4P 100KΩ J (R201, 202, 208) C9-004g * Resistor 1/4P 120KΩ J (R209) C9-004i * Resistor 1/4P 100Ω K (R) 214) C9-004j * Resistor 1/4P 330Ω K (R216) C9-004k * Resistor 1/4P 470Ω K (R213) C9-004l * Resistor 1/4P 1.5KΩ K (R215) C9-004m * Resistor 1/4P 10KΩ K (R210) C9-004n * Resistor 1/4P 15KΩ K (R212) C9-005a * Condenser 100μ 3V (C208, 209) C9-005b * Condenser 10μ 10V (C204, 202, 201, 206) C9-005c * Condenser 10μ 25V (C212) C9-005d * Condenser 50μ 25V (C203) C9-005e * Condenser 330P 35WV (C211) C9-005f * Condenser 220P 35V (C213) C9-005g * Condenser 0.01μ 50V (C205) C9-005h * Condenser 0.22μ 50V (C210) C9-005i * Condenser 1μ 10V (C207) C9-006 * Variable Resistor 20KB (VR201) C9-007 * Headphone Transformer 7K 8Ω (T201)
Site note
This board carries far more leader-line callouts (38) than distinct
part numbers (the 25 listed above): several resistor and condenser
values are used at multiple physical positions on the card, and the
manual draws a separate leader line to each position while repeating
the same Parts No. — for example "C9-004f", "C9-005b" and "C9-004l"
each appear on three or more leader lines. The table lists each
distinct Parts No. once, cross-referenced to Chapter IX, rather than
reproducing every repeated leader line.
Card Block-2

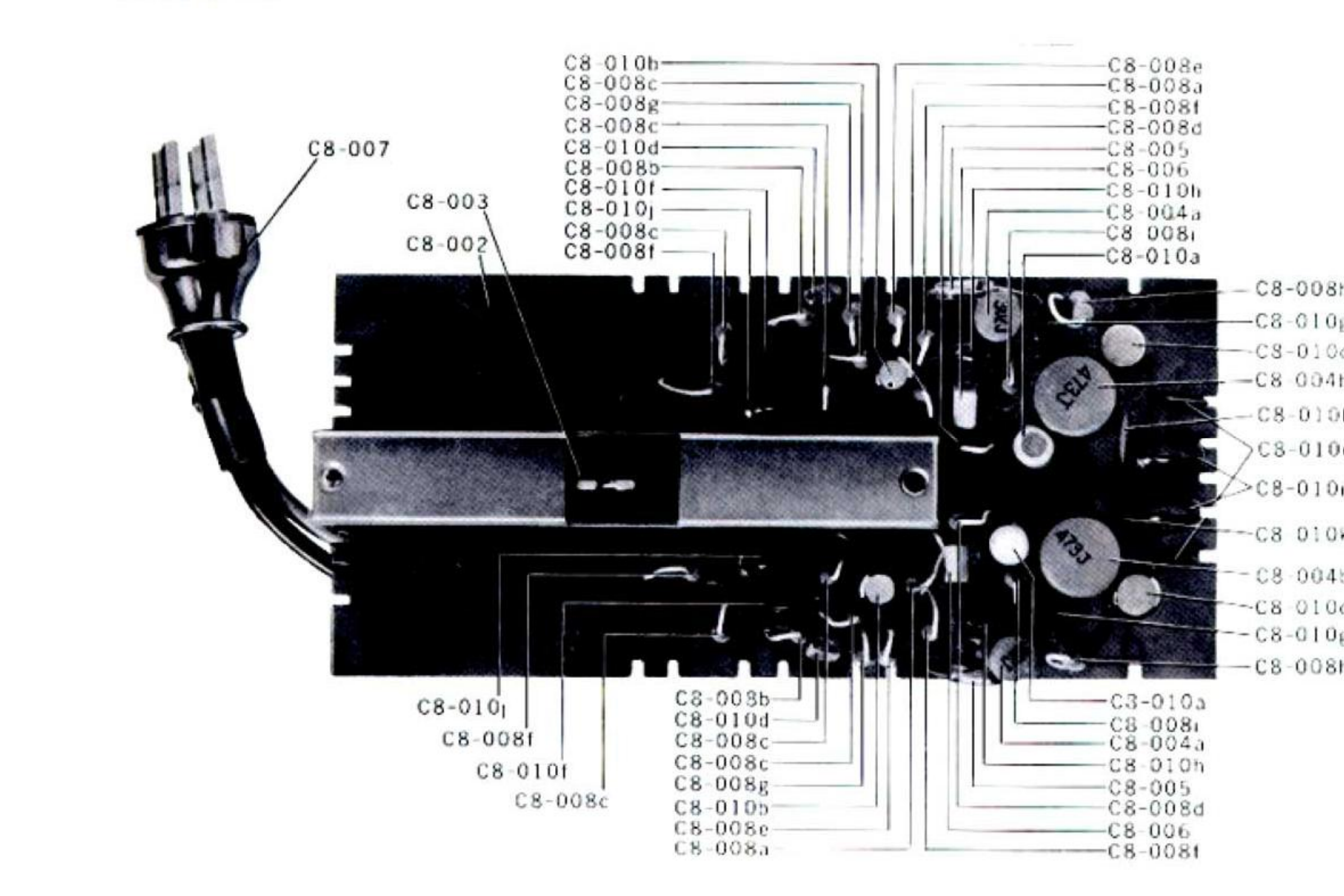

Switch Block card (CD 511) mounted on its heatsink with the AC cord and plug, leader-line callouts to every resistor and condenser position, and the CD-511 printed-circuit trace layout below it

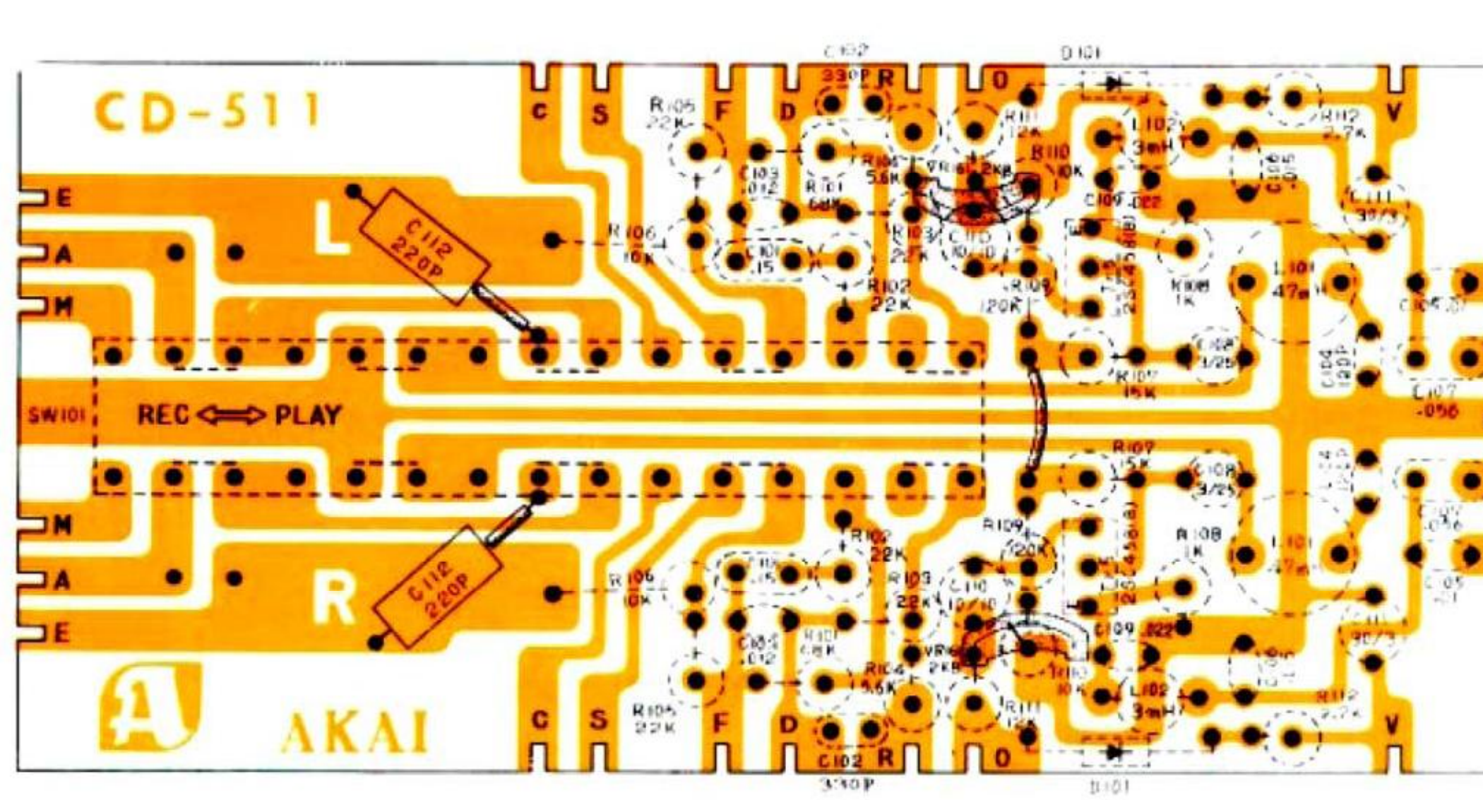

CD-511 printed circuit board trace layout, orange copper traces on white, with the L/R channel switch contacts, "REC ⇔ PLAY" sliding-switch rails, and component reference designators printed directly on the board
Callout Component (Chapter IX) C8-002 * Printed Circuit Plate, Switch Block C8-003 * Slide Switch SL-1021F C8-004a * Inductance 3mH (J) C8-004b * Inductance 47mH (J) C8-005 * Diode 1N34A (D101) C8-006 * Transistor 2SC458 (B) (Tr5) C8-007 * 4P Plug C8-008a * Resistor 1/4P 120KΩ K (R109) C8-008c * Resistor 1/4P 22KΩ K (R102, 103, 105) C8-008d * Resistor 1/4P 15KΩ K (R107) C8-008e * Resistor 1/4P 12KΩ K (R111) C8-008f * Resistor 1/4P 10KΩ K (R106, 110) C8-008g * Resistor 1/4P 5.6KΩ K (R104) C8-008i * Resistor 1/4P 1KΩ K (R108) C8-010a * Condenser 3μ 25V (C108) C8-010b * Condenser 10μ 10V (C110) C8-010c * Condenser 30μ 3V (C111) C8-010d * Condenser 330PF 35V K (C102) C8-010f * Condenser 0.012μ 50V J (C103) C8-010h * Condenser 0.022μ 50V K (C109) C8-010j * Condenser 0.15μ 35V K (C101)
Site note
As with Card Block-1, this board repeats several Parts No. callouts
across multiple leader lines (each pointing at a different physical
resistor or condenser sharing that catalog value); the table lists
each distinct Parts No. once. One callout on this figure — the label
beginning "C3-010a" — prints the digit "3" where every neighboring
label on the same board reads "8" (this is the Switch Block card,
C8 series, and there is no C3-010 anything in the Chapter IX table;
Motor Block C3 stops at "003"): [sic]
Card Block-3

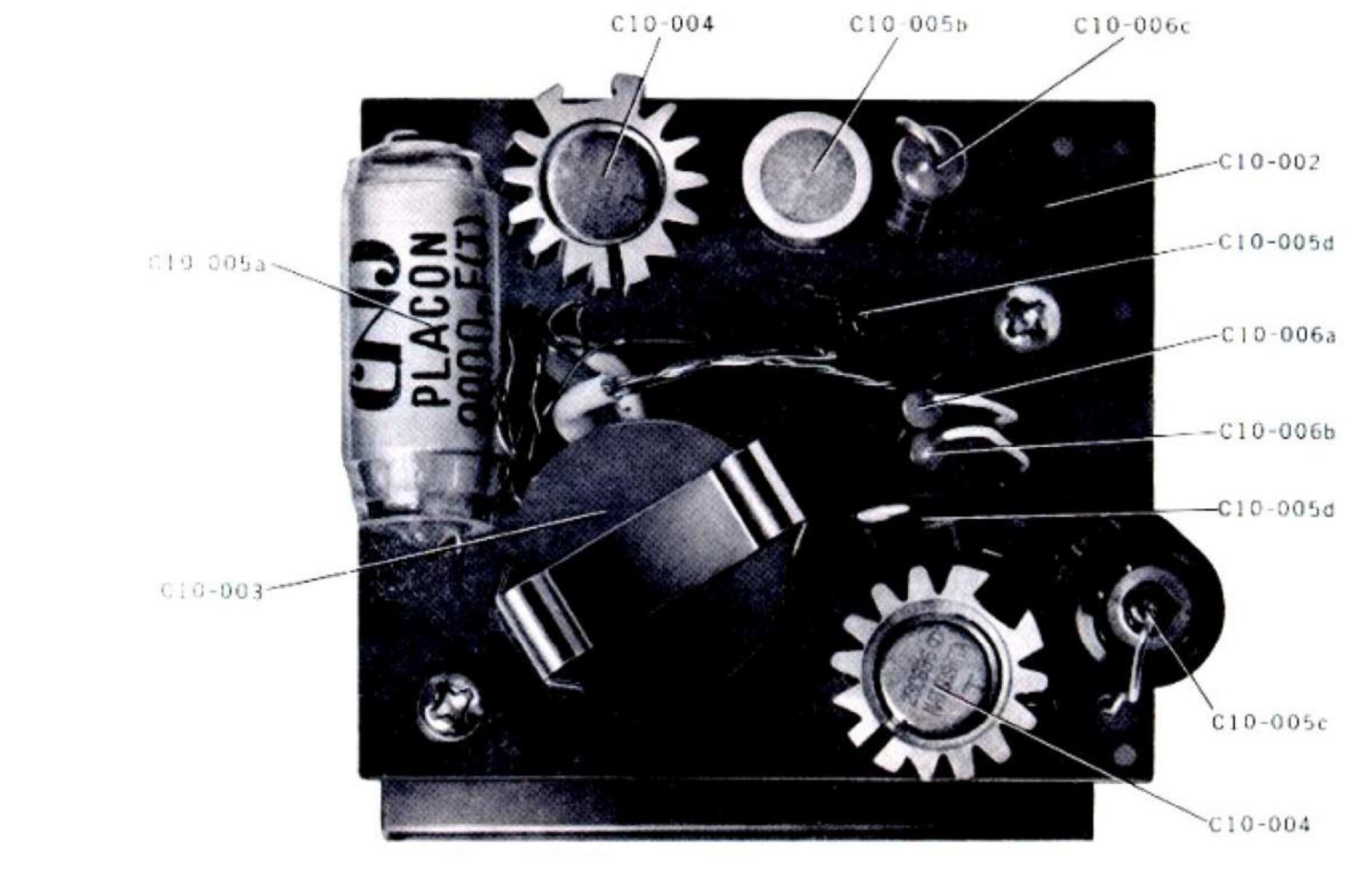

Oscillator Block card component side, with leader-line callouts to the oscillator coil, transistors and condensers, and the oscillator board's printed-circuit trace layout below it

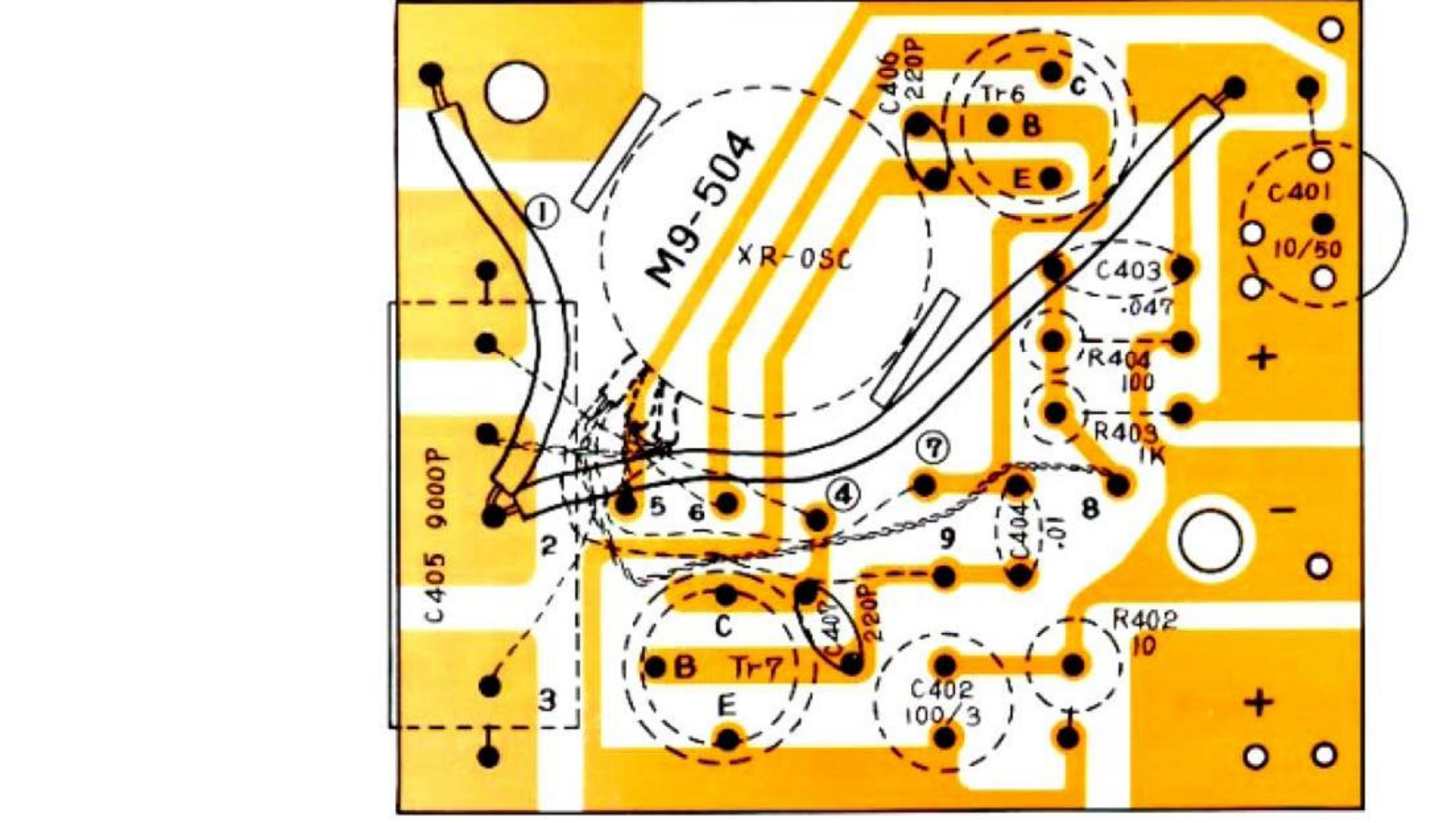

Oscillator ("M9-504 XR-OSC") printed circuit board trace layout, orange copper traces on white, with Tr6/Tr7 transistor pads and component reference designators C401–C407 and R402–R404 printed directly on the board, captioned "Tr 6, 7. 2SC696 (J)(I)(F)"
Callout Component (Chapter IX) C10-002 * Printed Circuit Plate, Oscillator C10-003 * Oscillator Coil C10-004 * Transistor 2SC696 (Tr6, 7) C10-005a * Condenser 9000PF 500V (C405) C10-005b * Condenser 100μ 3V (C402) C10-005c * Condenser 10μ 50V (C401) C10-005d * Condenser 0.01μ 50V (C404) C10-006a * Resistor 1/4W 1KΩ K C10-006b * Resistor 1/4W 100Ω K C10-006c * Resistor 1/2W 10Ω K
