Accessories

III.1. Accessories Optional

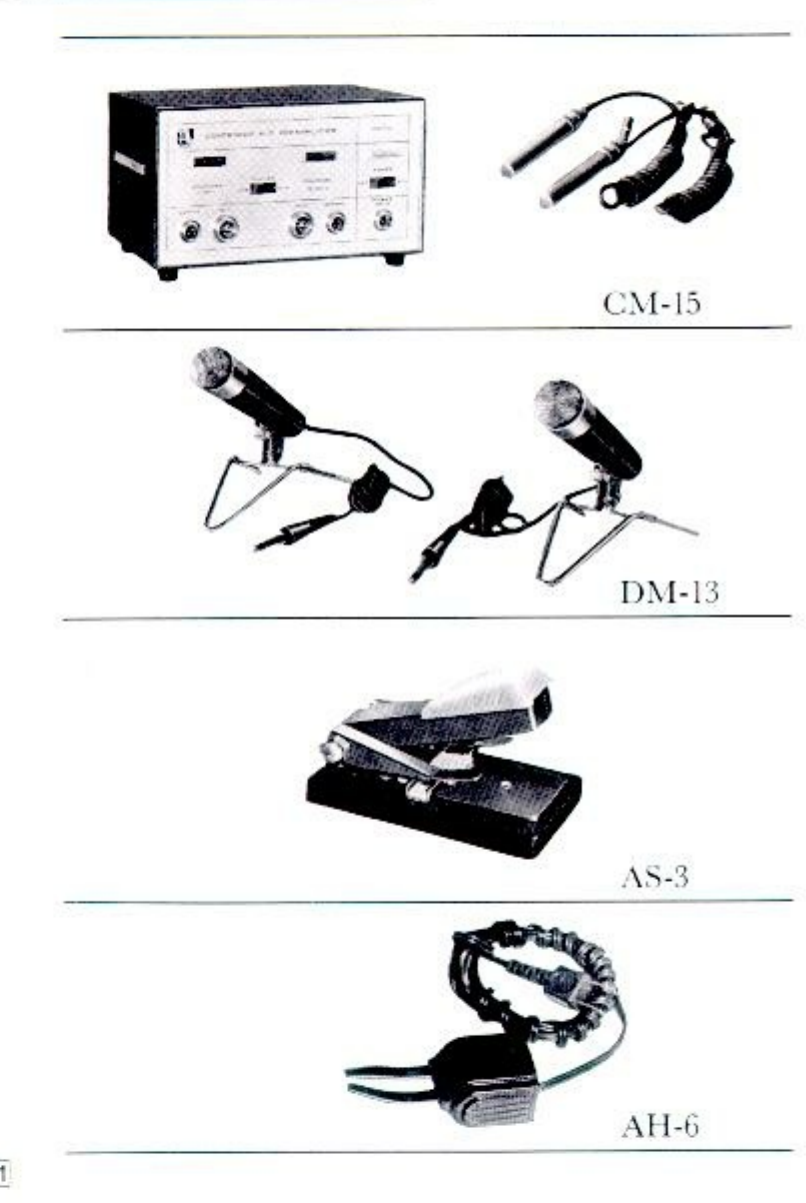

⤢ zoomAccessories, first page: photographs of the CM-15 condenser microphone pair with its pre-amplifier unit, the DM-13 dynamic microphones on desk stands, the AS-3 tape splicer, and the AH-6 head demagnetizer

Condenser Microphones No. CM-15

Akai's very latest high fidelity microphone is designed for the professional and Hi-Fi enthusiast. This unit consists of a microphone and pre-amplifier, and permits simultaneous use of two microphones for stereo purposes.

Frequency response: 50 to 15,000

Dynamic Microphones No. DM-13

Although compact, extremely high quality dynamic microphones. They are guaranteed to give complete satisfaction to the most critical audio enthusiast and professional users.

Frequency response: 50 to 12,000

Tape Splicer No. AS-3

This tape splicer is a small pocketable device and not only provides easy splicing but also preserves the original quality of recording.

Head Demagnetizer No. AH-6

Normally the steel pole pieces which form a part of the tape heads become slightly magnetized. The effect of the slight magnetization is to partially erase the tape (with high frequencies suffering most). A periodical application of the Head Demagnetizer is the best way to keep the original quality of the tape. The AH-6 has a built-in on-off switch and a neon bulb.

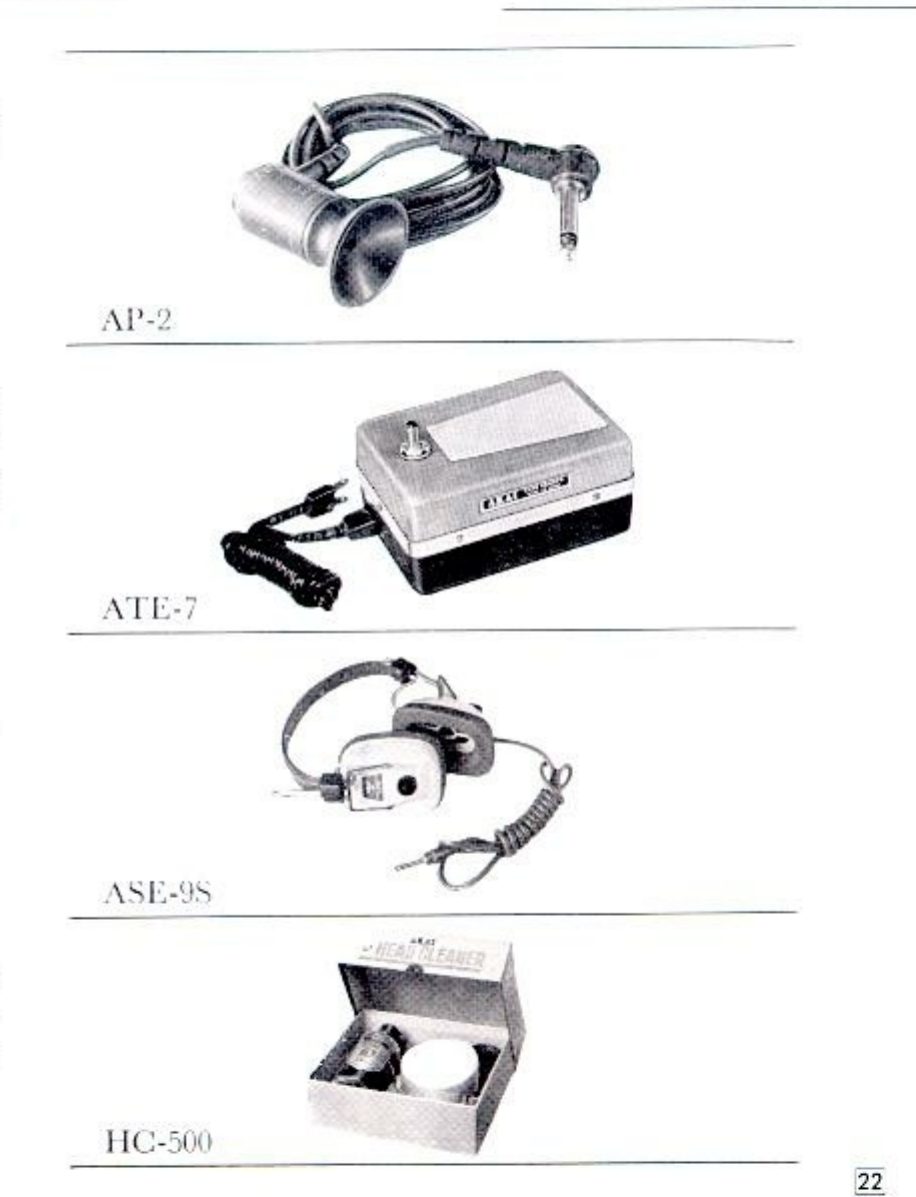

⤢ zoomAccessories, second page: photographs of the AP-2 telephone pick-up with its suction cup, the ATE-7 tape eraser, the ASE-9S stereo headphones, and the HC-500 head cleaning kit in its box

Telephone Pick-up No. AP-2

This is designed to record telephone conversations with maximum clarity and sensitivity. Just press it on to the back of the telephone receiver. Rubber suction cup holds the pick-up in position.

Tape Eraser No. ATE-7

This unit erases any previously recorded materials completely in a few seconds and accomodates tape reels from 3″ to 7″ in diameter. It is designed to provide maximum erasing efficiency. Has a pop-up shaft to hold the tape reel in position and also serves as a power switch and on-off bulb indicator of the unit.

Stereo Headphone No. ASE-9S

In order to enjoy true stereophonic effects with the Akai tape recorder, the Stereo Headphones ASE-9S is recommended.

Head Cleaning Kit No. HC-500

HEAD CLEANER proves its value when used to wipe off the brownish-red oxide powders that accumulate on both the head assembly and pinch wheel. Since these powders affect high frequency response, only good head cleaner should be used.

Tape Cleaning Kit No. TC-300

This Kit has been designed for the discriminating home enthusiast who wants to insure the longevity, and frequency response of his tapes. It enables you to clean off dust and other foreign particles that accumulate on tape, thus eliminating the main cause of tape squeaking.

AKAI Magnetic Tape & Tape Reel

AKAI Magnetic Tape	AKAI Tape Reel
AT-5S (600 feet)	ATR-5 (for 5″)
AT-7S (1,200 feet)	ATR-7 (for 7″)
AT-10S (2,400 feet)
AT-5L (900 feet)
AT-7L (1,800 feet)
AT-10L (3,600 feet)

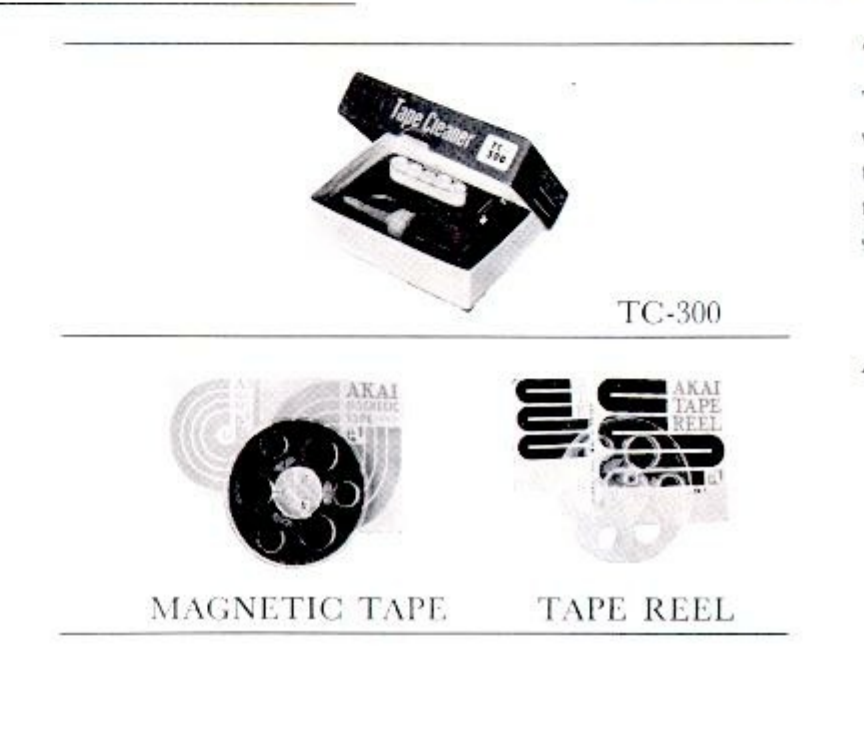

⤢ zoomAccessories, third page: the TC-300 tape cleaning kit opened, and the AKAI magnetic tape and tape reel packaging

III.2. Accessories Standard

Item	Qty
DIN Plug: Four Separate RCA Plugs Cord	1
Spare Fuse	2
Silicone Oil	1
Felt Pads	2
Operator's Manual	1
